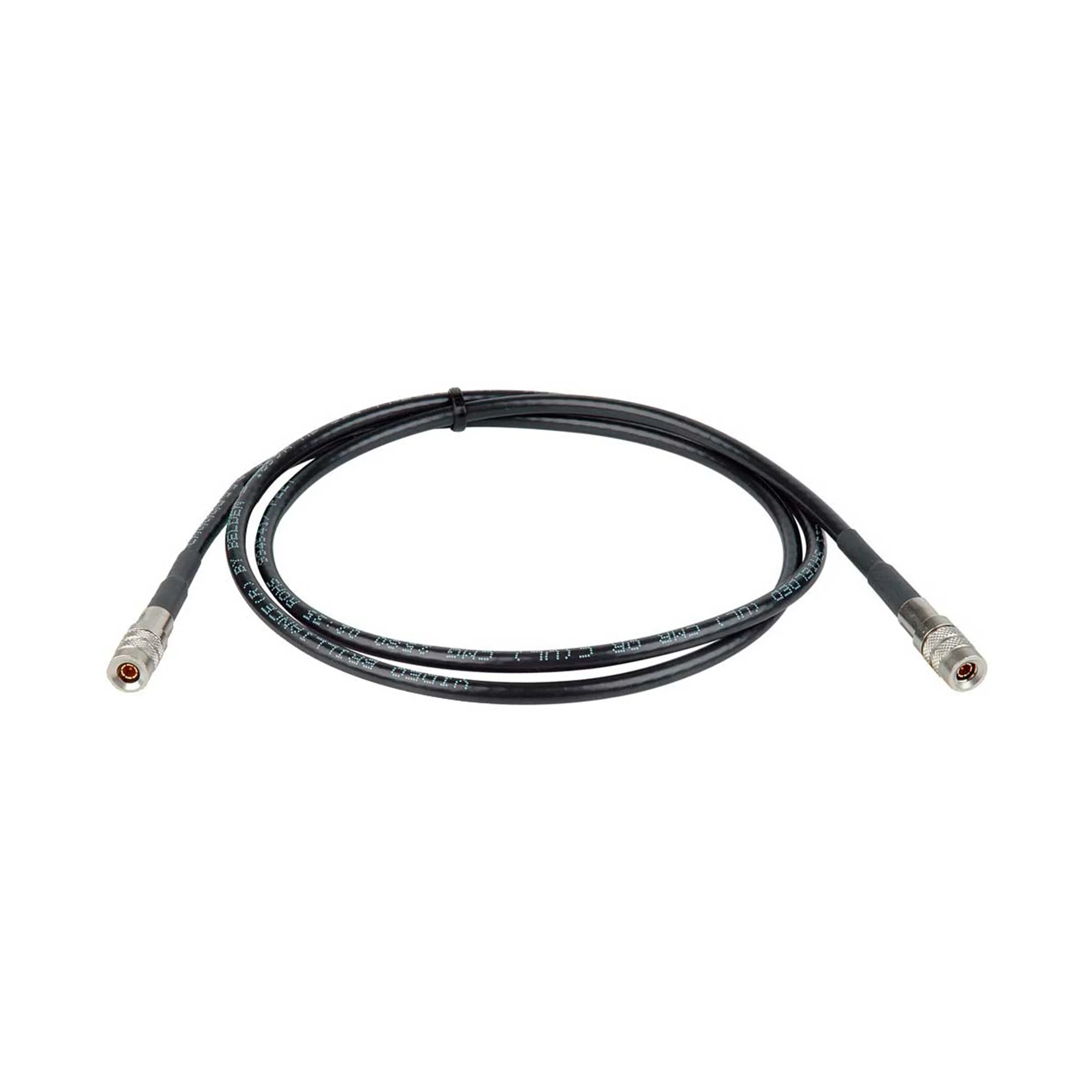

Laird Digital Cinema Belden 1855A 3G-SDI DIN 1.0/2.3 to DIN 1.0/2.3 Cable

DIN 1.0/2.3 Cables are finding their way into the latest new products in the broadcast market whether it be on a Red One camera or Evertz router. These have also found a home as AES/EBU DIN digital audio cables on equipment such as the Harris X50. There are many advantages to using the DIN technology for high speed and space savings. Some industry brands such as AJA, Nevion, Harris, MIRANDA, 3COM, CISCO and RED ONE to name a few have incorporated these new connectors. The Laird shop has designed DIN video cables for transmitting 3G-SDI using DIN 1.0/2.3 connectors and Belden 1855A Sub-Mini RG59 SDI Coax.

Highlights:

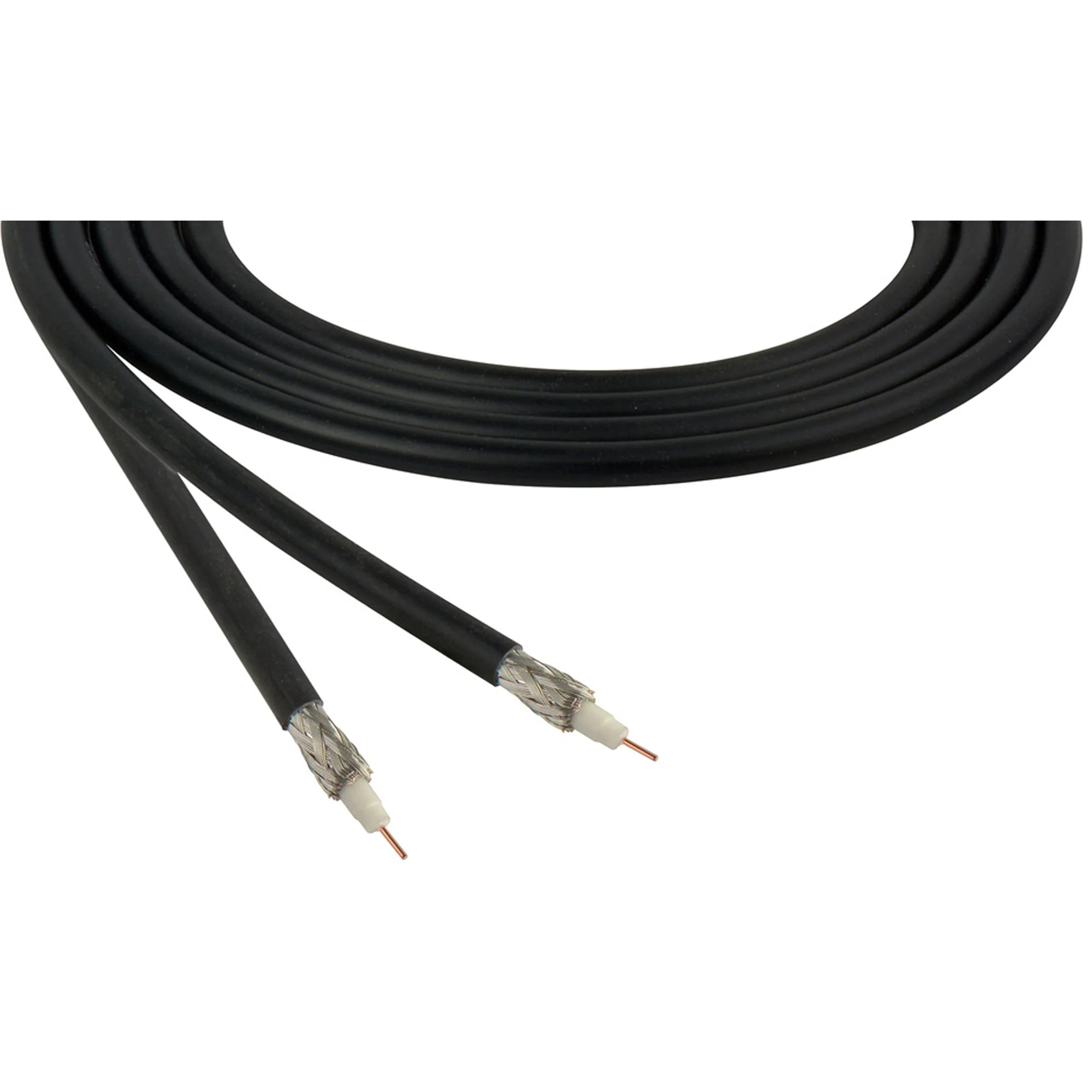

• Sub-Miniature Precision Broadcast Video Coax Cable
• Solid .023" Bare Copper Conductor
• Gas Injected Foam HDPE Insulation
• Duofoil + Tinned Copper Braid Shield (95% Coverage)
• PVC Jacket for Analog and Digital Applications

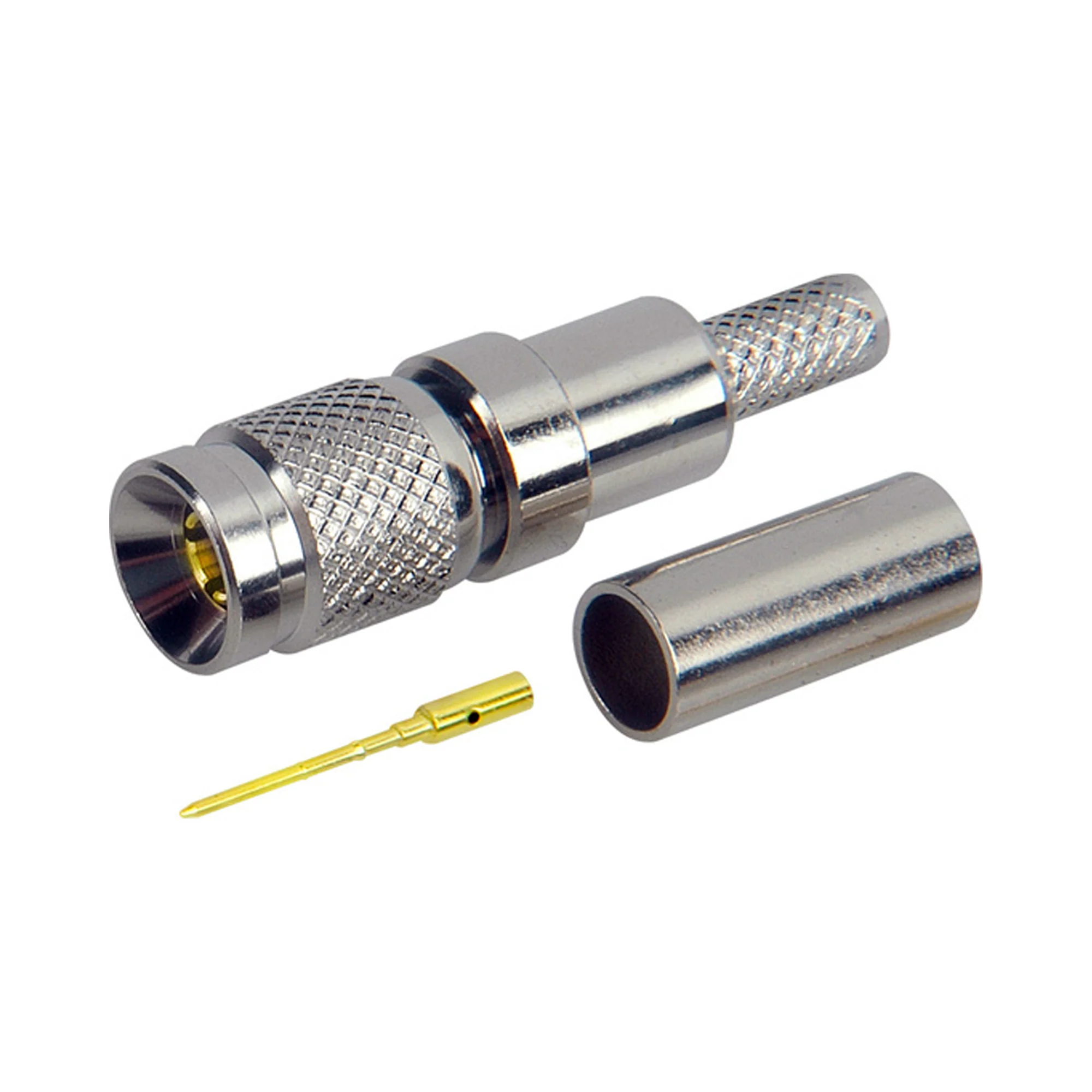

• Quick Connect Push/Pull System Connectors
• Locking Connectors Supports 3Gbps HD SDI SMPTE 424 Applications

Features:

• AWG: 23
• Stranding: Solid
• Material: Bare Copper
• Nominal Diameter: 0.023 in
• No. of Coax: 1
• Environmental Space: Indoor - Riser
• Suitable Applications: SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
• Electrical Characteristics Notes: TDR Impedance: 75 +/- 1.5 Ohms
• Other Electrical Characteristic 2: Return Loss: Fixed bridge and termination
• UL Temp Rating: 75°C
• Operating Temp Range: -30°C To +75°C
• UV Resistance: Yes
• Bulk Cable Weight: 17 lbs/1000ft
• Max Recommended Pulling Tension: 33 lbs
• Min Bend Radius/Minor Axis: 1.6 in

Size:

2'

Product SKU:

DIN1023-2

In The Box:

Laird Digital Cinema Belden 1855A 3G-SDI DIN 1.0/2.3 to DIN 1.0/2.3 Cable, 2'
Limited 1-Year Manufacturer Warranty
