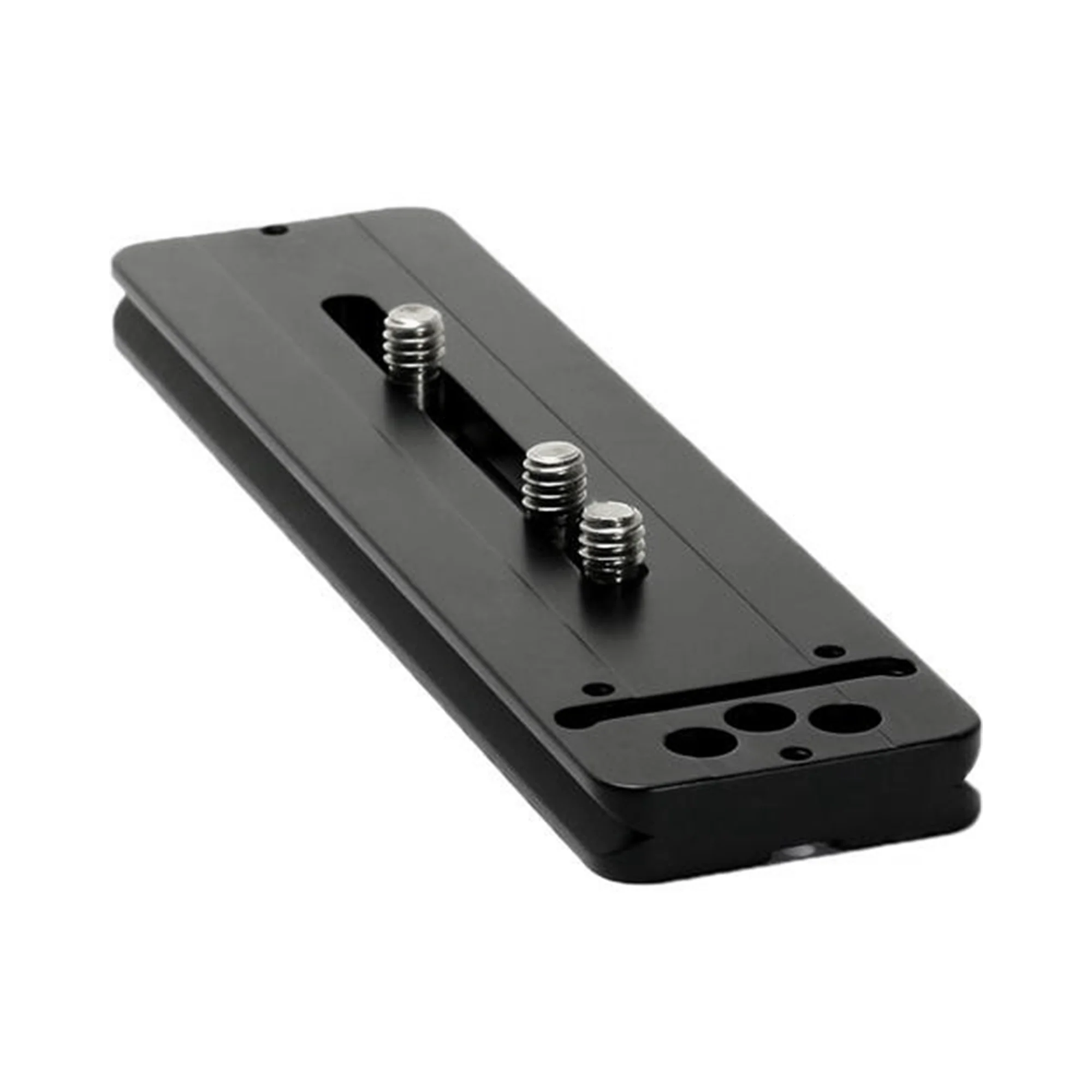

Wimberley P-40 Arca-Swiss Style Lens Plate

The P-40 is a 5.88” long, double dovetail, Arca-Swiss style quick-release plate. It is used to connect a camera lens, fitted with both a rotation collar and tripod mounting foot, to a compatible quick-release clamp. Wimberley plates are compatible with most Arca-Swiss style quick-release clamps, such as those made by Wimberley, Really Right Stuff, Kirk Enterprises, Markins, Arca-Swiss, Foba, Graf and others.

Dual Safety Stops

Safety stops at the front and back of our plates keep your expensive lens from accidentally slipping out of the quick-release clamp. If you wish to use only one or neither of these stops, simply remove them with the hex key provided.

Flash Bracket Versatility

Our plates are designed to accept RRS & Kirk flash brackets as well as our own quick-release flash brackets.

Double-Dovetail Cross-Section

Our unique double-dovetail design allows you to attach Wimberley quick-release flash brackets to the upper or lower surface of the plate.

Anti-Twist Nubs

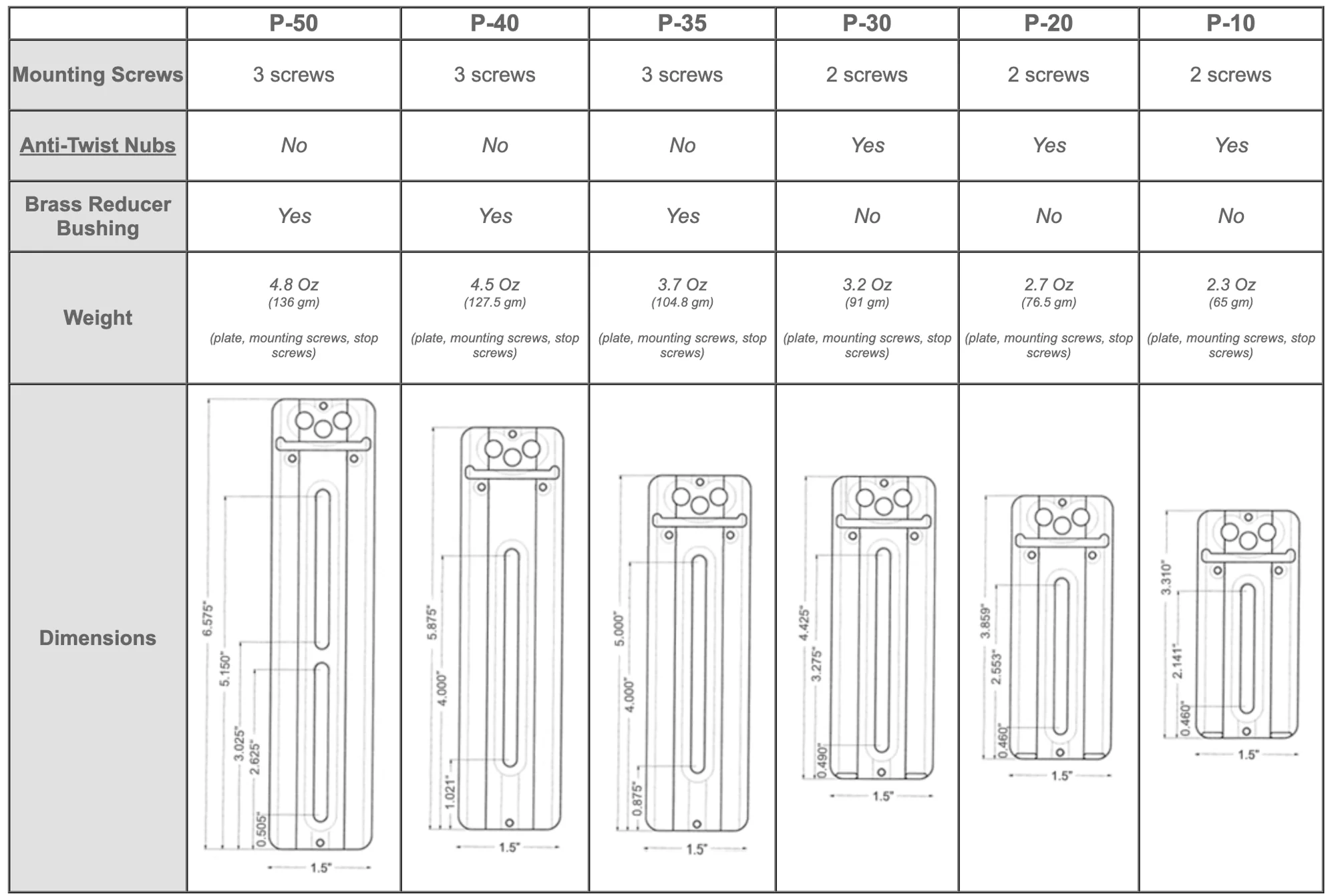

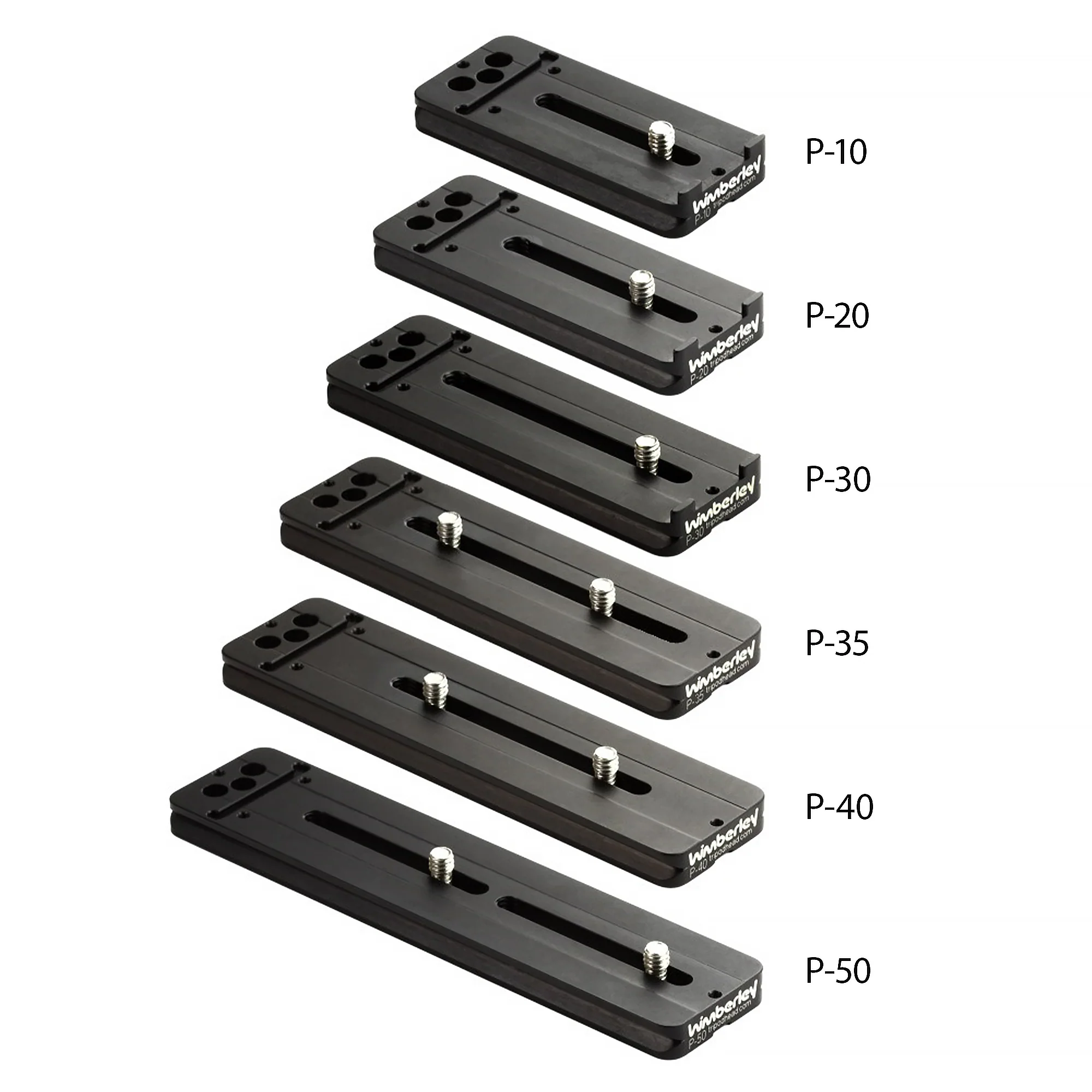

The P-10, P-20, and P-30 plates have anti-twist nubs at the back of the plate. These help to keep the plate from twisting if it is mounted with only one fastener. The unique dual-nub design (as opposed to a single continuous flange) provides better performance when butted against a curved surface. The P-40, P-35, and P-50 plates do not have anti-twist nubs because the lenses they are normally mounted to usually have more than one mounting hole.

Features:

• Safety stops
• Double-dovetail design
• No anti-twist nubs at the back of the plate

Compatible With:

Tripod Heads:

• Arca-Swiss Style Tripod Heads

Dimensions:

5.9 x 1.5 x 0.4”

Weight:

0.25 lbs

Materials:

Anodized 6061 Aluminum, Stainless Steel

Product SKU:

P-40

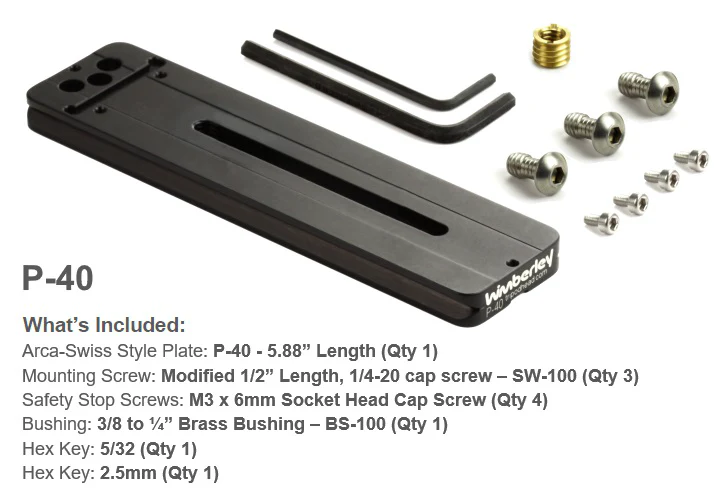

In The Box:

Wimberley P-40 Arca-Swiss Style Lens Plate
3x Mounting Screws: SW-100 — 1/4”-20 x 1/2”
4x Safety Stop Screws: M3 x 6mm Socket Head Cap
1x Reducer Bushing: BS-100 — 3/8” to 1/4” Brass Bushing
1x Hex Key: 5/32
1x Hex Key: 2.5mm
