SmallRig VB99 Pro Mini V-Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable!

The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.!

In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc.

Such interfaces as D-tap / USB-C / USB-A / 8V-OUT / 12V-OUT / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert!

The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery's status at all times.

Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards.

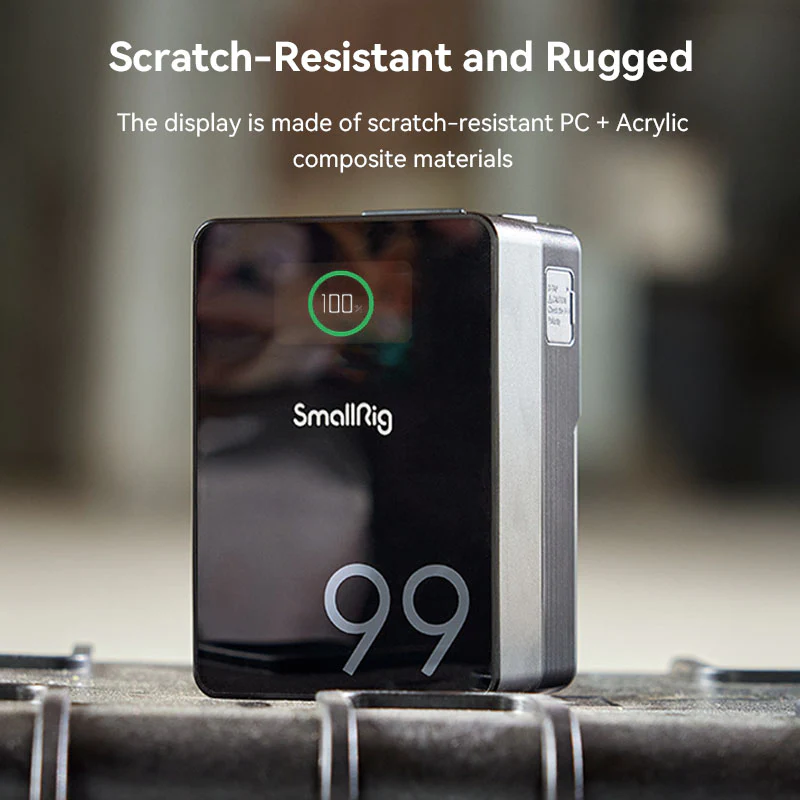

Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, cratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately.

Overall, this item is safe and powerful enough for you to capture every moment without burden!

Features:

• BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2.5 hours

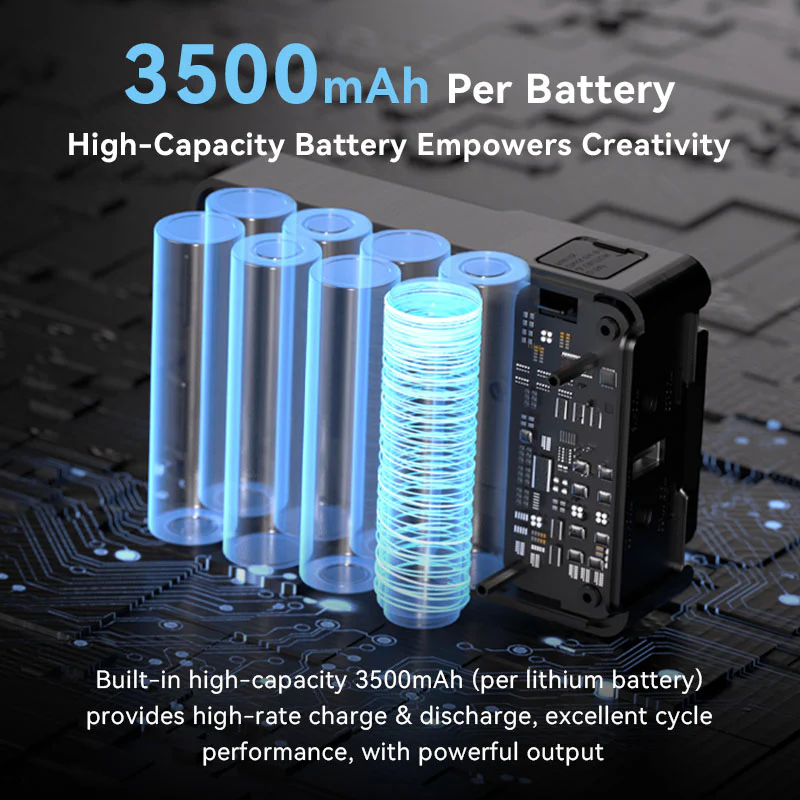

• Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable
• Highly integrated design, about 70% the size of a normal V-mount battery, lighter and more portable
• Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 8V-OUT, 1 12V-OUT, each with a shunt design to allow simultaneous USB-C and USB-A fast charging
• Aluminum alloy and fireproof PC, sturdy and drop-proof
• Durable, cratch-resistant PC and acrylic cover on the front
• TFT color screen displays status clearly and accurately

Compatibile With:
1. MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.
2. The 12V-OUT port is not compatible with Atomos Ninja V and Ninja V+. 8V-OUT, D-Tap and other ports are compatible.

Specifications:
Battery Capacity: 6700 mAh / 99.16 Wh
Output Voltage: 14.8 VDC
Maximum Load: 14 A
Accessory I/O:
1 x D-Tap / P-Tap Output 14.8 V, 14 A Regulated
1 x USB Type-A Output 5 V Regulated
1 x D-Tap / P-Tap Input 8 A Regulated
1 x USB Type-C Input/Output 100 W Regulated
1 x Barrel 2.5 mm Output 12 V Regulated
1 x Barrel 2.1 mm Output 8 V Regulated
USB Output:
12 V, 2.5 A
9 V, 3 A
5 V, 3 A
Charging Voltage: 16.8 VDC
Accessory Mounting Thread: No
Certifications: FCC, CE, RoHS, RCM, PSE, KC
Dimensions (W x H x D): 4.3 x 3 x 2.2" / 109.2 x 75.2 x 55.2 mm

In The Box:
SmallRig VB99 Pro Mini V-Mount Battery 4292
240W USB-C Charging Cable
User Manual



*Note: Manually measured weight and size may not be accurate.
