SmallRig x Caleb Pike VB212 Mini V-Mount Battery 4293

The SmallRig x Caleb Pike VB212 Mini V-Mount Battery is a compact and lightweight battery with a 212Wh capacity. It has a maximum 10A draw and a nominal 14.76V output. This versatile battery can be used to power handheld cameras, drones, and gimbals while on-the-go. It features a range of accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output, making it compatible with a variety of accessories, cameras, and mobile devices. It can be charged with a standard V-mount charger, optional D-Tap charger, or via USB-C input/output using a PD fast charger. The OLED display on the battery provides important information such as remaining battery capacity and status.

Secure Cells
This product features 12 built-in LG 21700 batteries, each with a density of 5000 mAh, ensuring safe and stable charging and discharging cycles.

Intelligent BMS

• Over-discharge Protection
• Cell Protection
• Short Circuit Protection
• Overload Protection
• Temperature Protection
• Overcharge and Overcurrent Protection
• Discharging operating temperature: -15°C to 60°C (5°F to 140°F)
• Charging operating temperature: 0°C to 50°C (32°F to 122°F)

Quality Tested
This product has undergone over 281 test procedures and over 1,500 safety tests in total to ensure its high quality.

Full Range of Interfaces
Secured by silicone cover to keep them clean and intact

Parallel Circuit
For fast charging several devices simultaneously
*The total output of parallel USB-C (2 ports) and USB-A fast charging does not exceed 212W

Lightning-Fast PD3.1 Charging
Utilizing USB-C ports, this product supports PD3.1 fast charging standard, achieving exceptional performance with a maximum output of 140W.

Provide up to 10 minutes of power for a 16-inch MacBook Pro, charging it up to 22% in a single use.

Full Charge in Just 2 Hours
Comes with a fast charging cable with the leather tie with Caleb's signature
*SmallRig Lab showed achieving full charge in just 2 hours with 140W fast charging

Refined in Appearance
Simple and elegant appearance Scratch-resistant TFT display with clear and accurate data view

Features:

· Powerful Performance: Boasting a 212W capacity and 140W of PD 3.1.
· Fast Charging: Bi-direction PD Rapid Charging, fully charged in 2 hours.
· Pocket Size: Travel-Friendly Design, highly integrated design.
· Durable Build: Featuring a scratch-resistant PC and acrylic front cover.

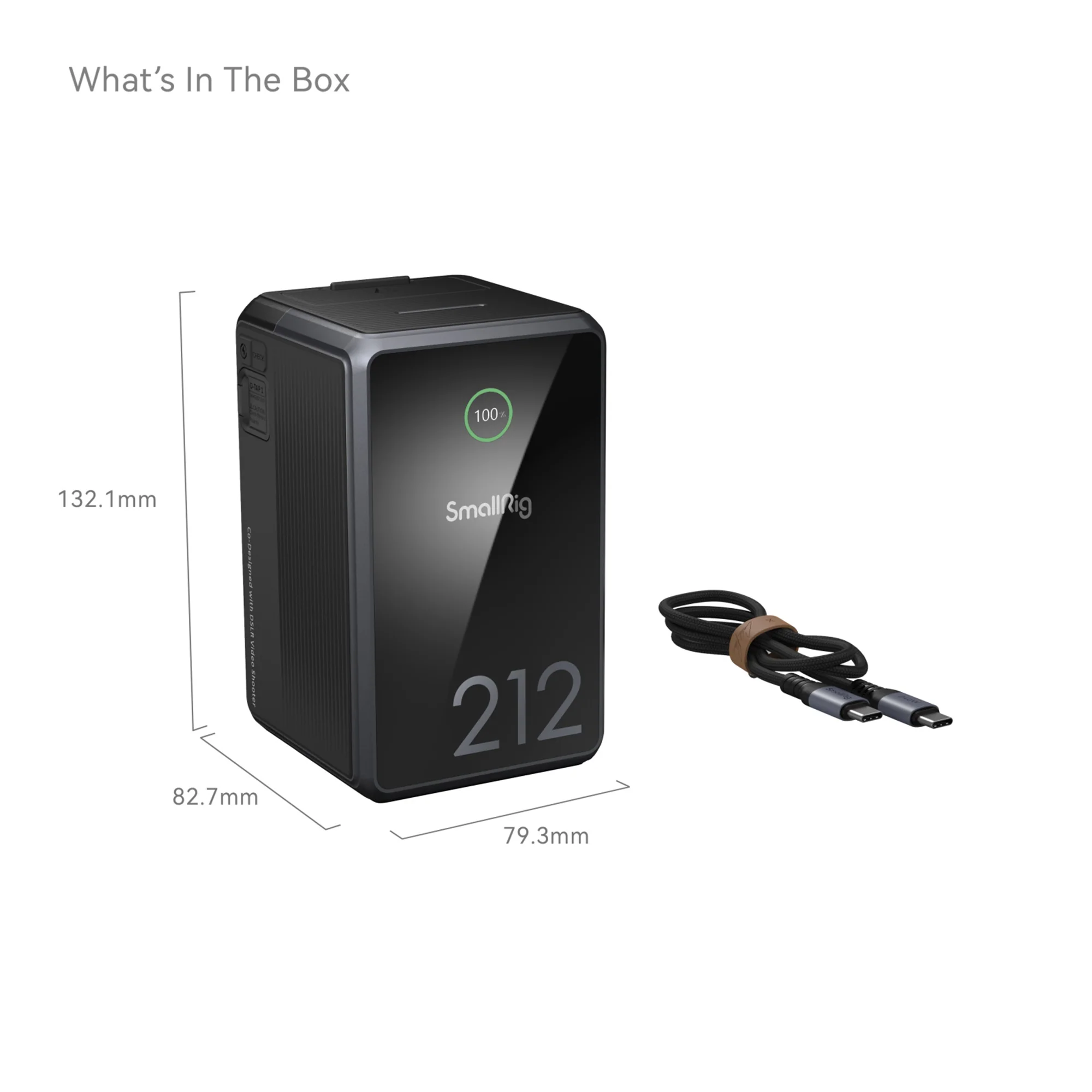

In The Box:

SmallRig x Caleb Pike VB212 Mini V-Mount Battery 4293
USB-C Charging Cable (240W)
Limited 1-Year Manufacturer Warranty





Note: Charger is not included.
