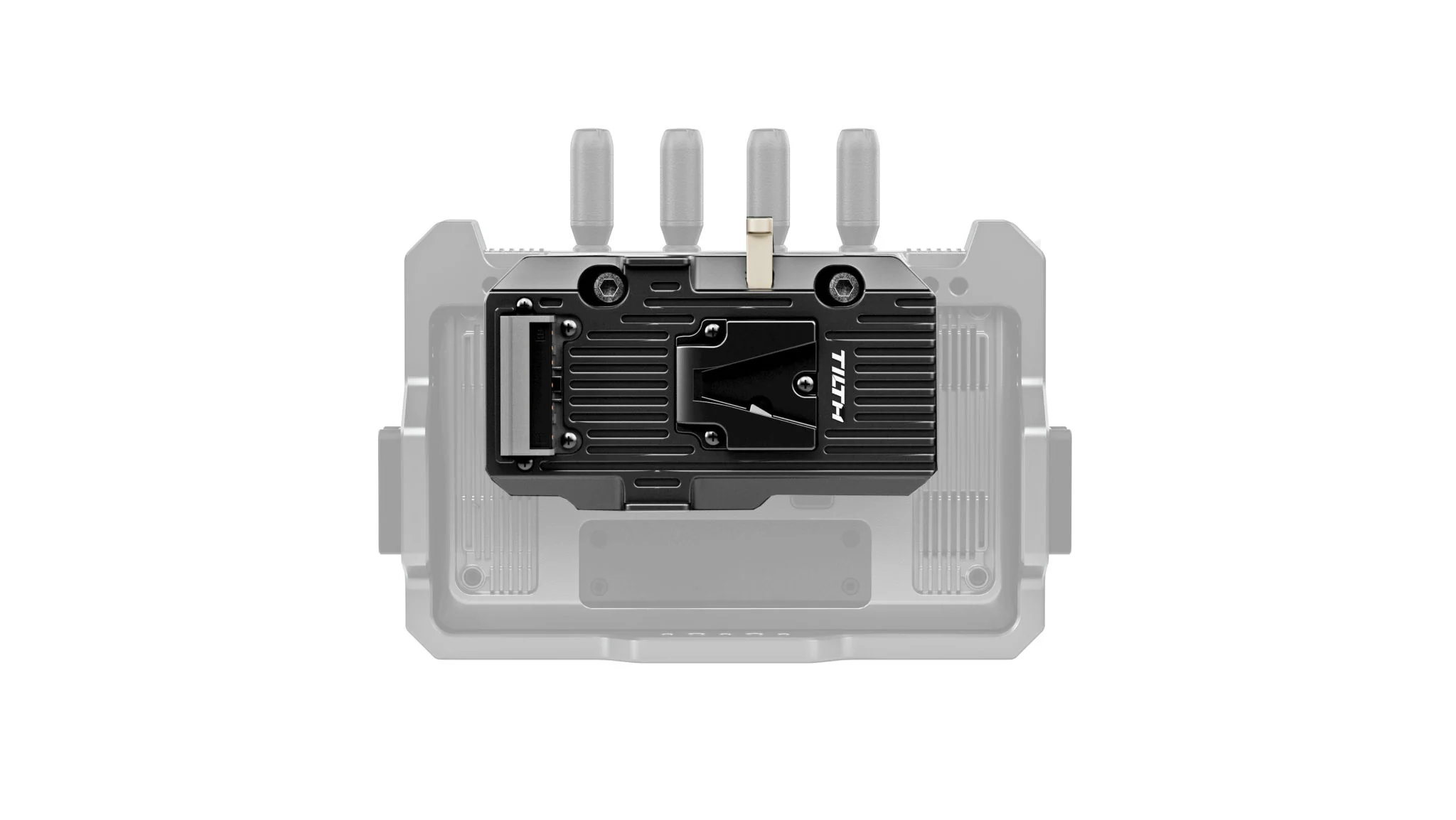

The Tilta Battery Plate allows you to power your High Bright Remote Monitor via a higher capacity V-Mount Battery.

This is the perfect solution for powering your monitor for longer periods of time especially when the added weight of a larger battery is not a concern.


Features:

• Handles Open And Close Smoothly: Adjustable angles for flexible viewing
• Compact & Lightweight: Designed for ergonomic and lightweight operation. Supports comfortable handling for longer period of time.
• Comfort: Full anti-slip silicone pad for comfortable handling.
• Universal Connection Via Side Handle Attachment: Supports mounting to monitors with 1/4”-20 threads.
• Horizontal Adjustment: 32mm adjustment range. Adjust the center of gravity for better handling.
• Secure Mounting: Use the 1/4”-20 screws to connect the monitor and the battery plate. Provides added protection the battery mount and the monitor’s contact points.
• Ready For Expansion: Multiple built-in mounting points for various accessories. Easily accommodates efficient handheld setup.

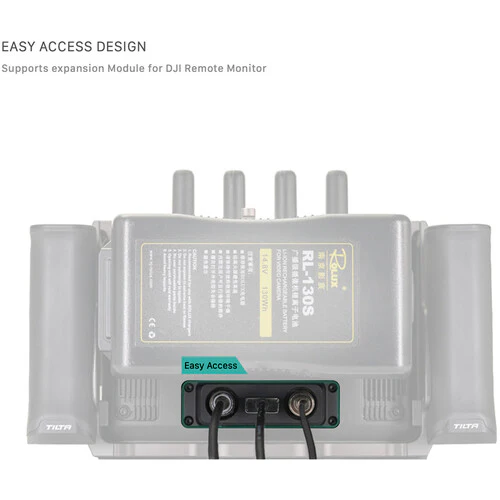

• Easy Access Design: Supports expansion Module for DJI Remote Monitor

Technical Specs:
Camera Power Method: Battery Plate Mount Type
Plate Front / Battery Mount: V-Mount
Plate Rear Mount: Proprietary Battery Plate
Number of Battery Bays: 1
Material: Aluminum, Stainless Steel
Dimensions: 5.4 x 3.5 x 2" / 138 x 90 x 51 mm
Weight: 8.7 oz / 246 g

In The Box:
1 x Tilta Battery Plate for DJI High-Bright Remote Monitor – V Mount
1 x 1/4 Hex Screwdriver（4.04.TGA-BHB-005.00)
